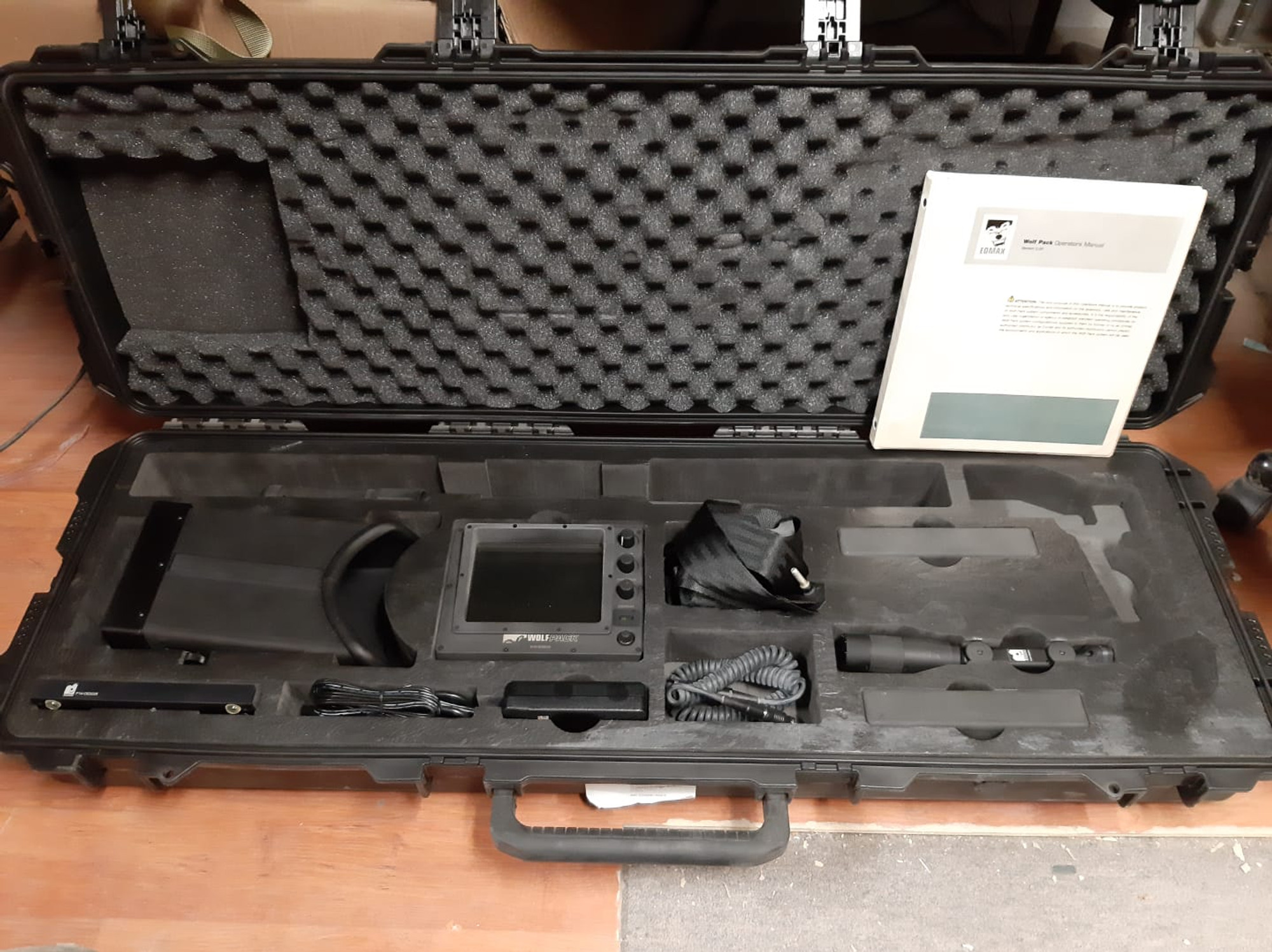

Wolf Pack Pole Camera System Package

EW-CL1d

Camera Type: B&W near infrared (NIR) optimized CCD
Sensitivity: 0.01 LUX (f1.2 / max AGC)
Resolution: 450 TVL
Illumination: near infrared (NIR) ringlight with 8 high intensity LEDs
Connector: Eomax CA-X waterproof quick-release • rotatable 3000 for camera orientation
Pressure Rating: 10 ATMA (300’ / 90m)
Dimensions: diameter: 1.37” (47mm) • length: 4.3” (110mm)
Weight: 6.4oz (180g)
Operating Temperature: -20 C ~ +50 C
Storage Temperature: 30 C ~ +70 C

CA5d Articulation Section

A compact mounting solution that allows a wide range of Wolf Pack cameras to be connected to
any Wolf Pack system pole. The CA5d has a 360° range of motion and is equipped with rollers to facilitate occasional usage in
applications such as under-vehicle searches.

Body Harness

Used in conjunction with flat panel display / battery assemblies in body mount applications.
Locking pin connectors interface to system components for a secure quick release connection.
Supplied with harness extenders to fit larger individuals and those wearing body armor.

EP8d Straight Pole

Package Includes:
