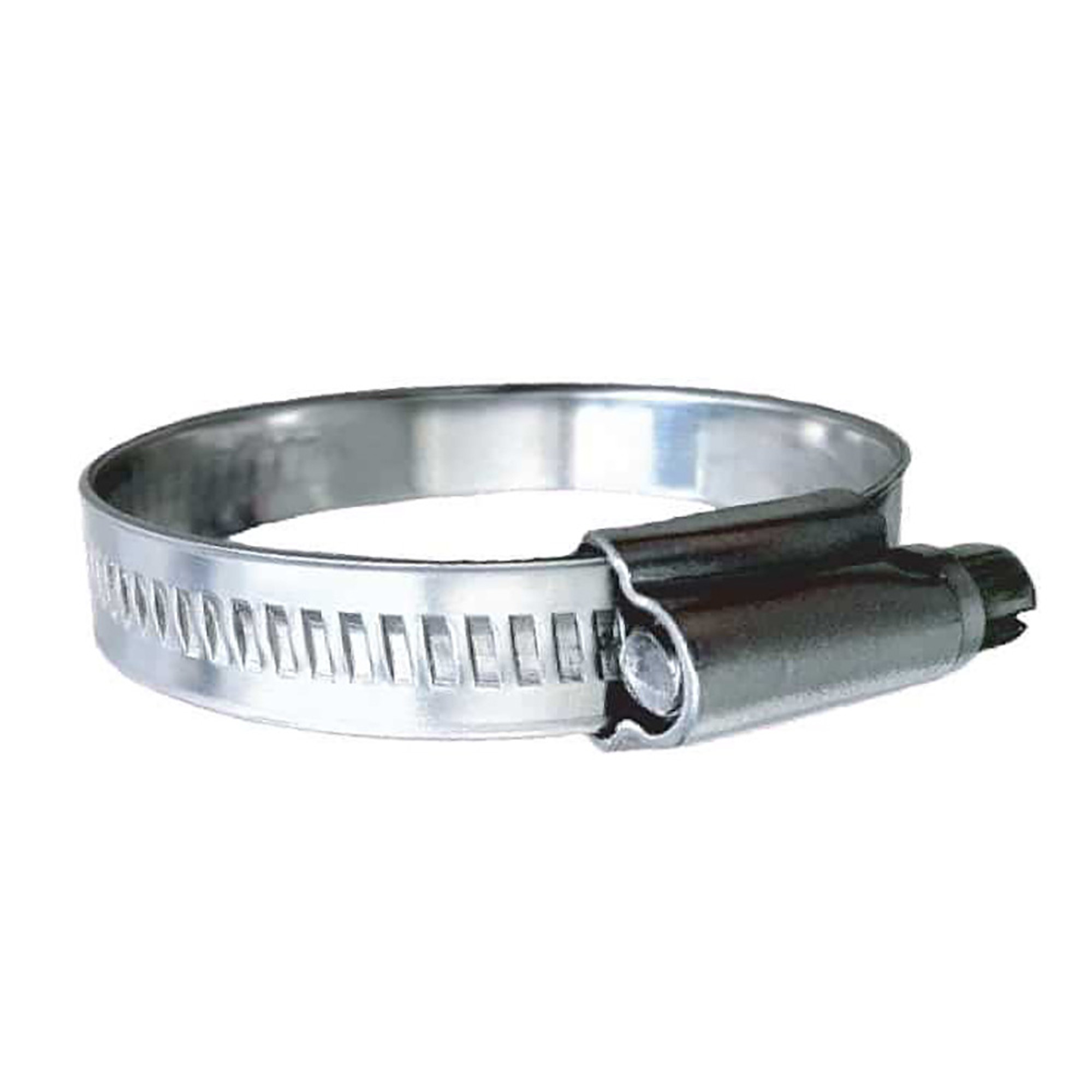

Trident Marine 316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-3/4" 2-1/4") Clamping Range - 10-Pack - SAE Size 28

(No reviews yet)
SKU:
CW98831
UPC:
704917019239
$88.35

316 SS Non-Perforated Worm Gear Hose Clamp - 15/32" Band - (1-3/4" ā€“ 2-1/4") Clamping Range - 10-Pack - SAE Size 28

Premium Marine Grade, all AISI 316 (high tensile strength) Stainless Steel ā€œHD NON-PERFā€ Worm Gear Hose Clamp. The 11.7 mm (0.46ā€) wide band is Non-Perforated and Smooth on the inside with Rolled Edges. This eliminates hose damage with increased clamping force. The High Strength, Compact, One Piece 16mm (0.63ā€) wide Housing provides one of the highest clamping force ratings of any worm gear style clamp. Ā

Features:

  • The screw head is 7mm
  • Long service life and safety for most general-purpose hose applications and connections

Recommendations:

  • Measure hose O.D. before selecting clamp size for proper fit
  • Double clamp on each hose end for critical applications
  • Consider using our #720 Series wide band 316 SS T-Bolt Clamps for larger I.D. hoses (i.e. Exhaust Hose, etc.)

Construction:

  • Band & Housing: 316 Stainless Steel 11.7 mm wide band ā€“ 0.9mm thick
  • Screw Drive: 316 Stainless Steel 7.0 mm screw head

Specifications:

  • SAE Size: 28
  • Hose Inner Diameter: (inch) 1-1/2" - 1-5/8"Ā
  • Clamping Range: (inch) 1-3/4"ā€“ 2-1/4" / (mm) 44-56
  • Recommended Torque Inch lbs: 45-60

Manufacturer : Trident Marine
Manufacturer Part No : 710-1121
UPC : 704917019239
