T238 Smart Speed Loader Max

(No reviews yet)
SKU:
128643 (SL-T238-SL-MAX-01)
Condition:
New
Availability:
Ships in 1 to 19 Business Days
$300.75

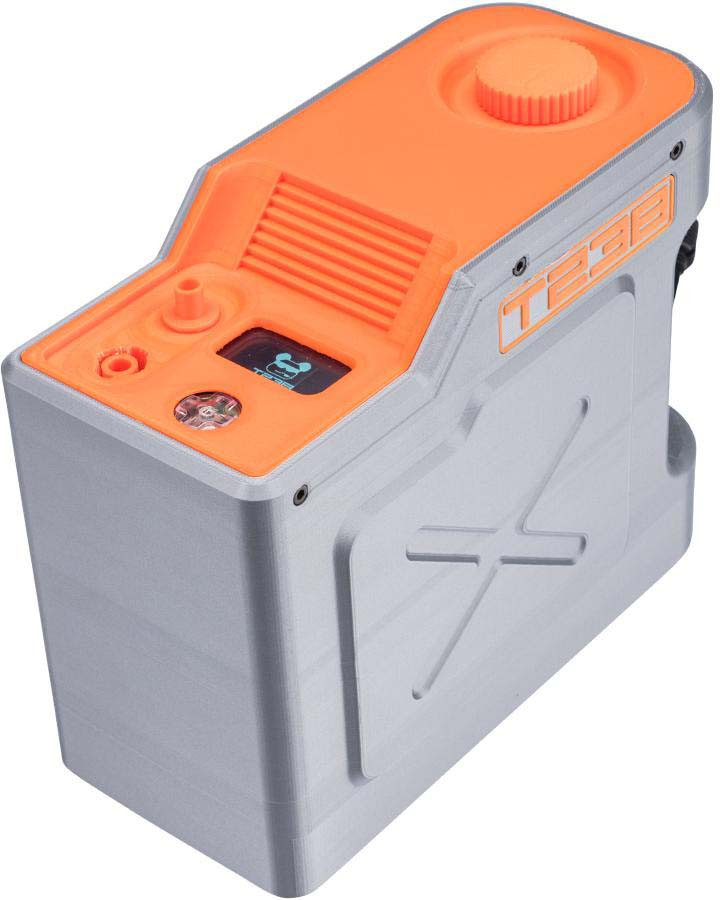

T238 Smart Speed Loader Max

Features

  • 3D-printed MAX Edition shell expands hopper capacity to 7,000+ 6mm BBs
  • Threaded entry port accepts standard soda bottles for even greater BB capacity
  • Metal loading wheel delivers about 23.5N of thrust for heavy spring magazines
  • Loads at up to 24 BBs per second when powered at 12.6V
  • 12V DC external power port supports use with a regulated power adapter
  • Anti-stall protection cuts motor power within 0.08 seconds to help prevent gear damage
  • Auto jam recovery reverses the motor three times to help clear BB blockages
  • Includes four adapters for GBB, AEG, shotgun, and bolt-action magazines
  • Preset mode loads a fixed quantity from 1 to 999 BBs and stops automatically
  • Dynamic manual mode activates on magazine contact and stops when released
  • Smart safeguards include low BB alerts, voltage control, ESC overheat protection, and auto sleep

T238 Speed Loader MAX - Mega Capacity, Metal Power, Battle-Ready!
The T238 Electric Speed Loader MAX Edition is an expanded-capacity version of the PRO model. It features a 3D-printed shell that increases hopper capacity to 7,000 BBs. The feed port is threaded for compatibility with standard soda bottles, allowing for further capacity expansion.

The core internal components of the MAX Edition are compatible with the PRO Edition. Key upgrades include a metal loading wheel, enabling a maximum loading speed of 24 BBs per second at 12.6V. It also adds an unloading port for conveniently emptying magazines and incorporates a 12V DC input jack for operation via an external regulated power adapter. If you already own the PRO Edition, you can download the design files and 3D print the components to upgrade your unit to the MAX Edition.

Manufacturer: T238

Specifications:

Dimensions (mm): 220 x 106 x 180
Weight: 800g
Capacity: 7,000+
Loading Thrust: ~23.5N
Loading Rate: 24 BBs/Sec @ 12.6V
Maximum Supported Battery Size (mm): 122 x 20 x 48
Battery Connector: T-Plug, compatible w/ standard Deans
Battery: 11.1V 1100mAh LiPO Impulse Battery (included)
Power Consumption: Max. 30W
Power Supply/Adapter:

  • Input: AC100~240 50/60Hz
  • Output: 12V-6A
  • DC Connector: 5.5mm
  • AC Connector: NEMA 1-15 Plug

Operating Temperature: -20@deg;C~45°C
Package Includes: Loader, Adapter Set, Power Adapter, LiPo Battery, Patch

Disclaimer:

  • Do not modify motor voltage. May cause permanent damage.
  • Do not disassemble
  • For 6mm plastic BBs only. Do not load metal BBs or BBs of another diameter
  • Reversed battery polarity will permanently damage the motherboard. (Always verify positive/negative terminals before connecting.)
  • Voltage exceeding 13V will permanently damage the motherboard. (Ensure your battery's voltage is compatible before use.)
  • Disconnect power before clearing jams
  • Included battery may be housed in the speed loader during shipment
