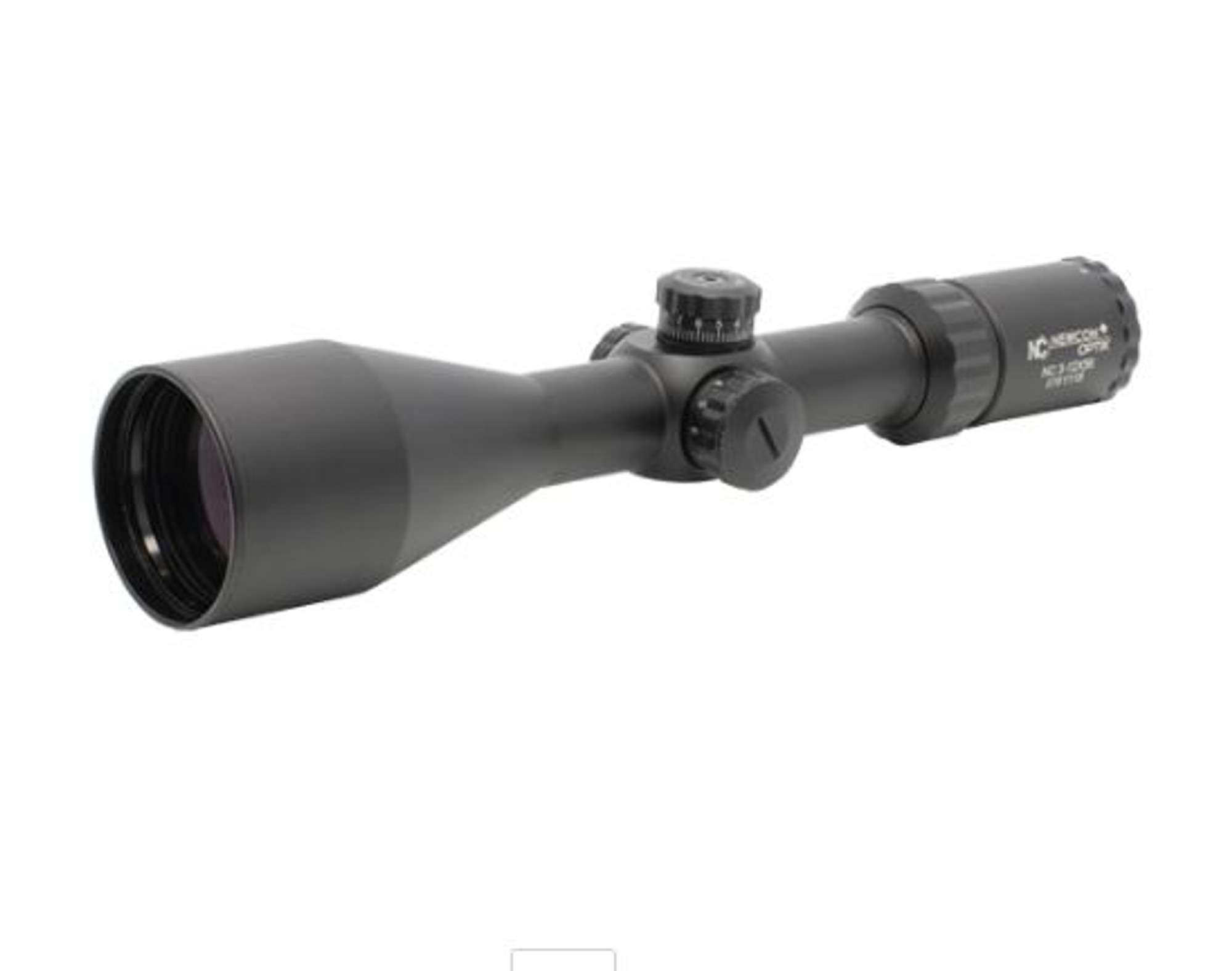

The NC 3-12×56 is a daytime riflescope which features variable magnification and is designed for use on a variety of weapon platforms. The riflescope features a Mil-Dot reticle positioned in the second focal plane of the eyepiece, ensuring permanent sizing of the reticle regardless of the variable magnification setting being utilized. The reticle is LED-lit with 11 adjustable brightness levels to choose from.
Ideal for acquiring small targets at long distances, the riflescope is equipped with a central system parallax adjustment, effective for ranges of 50 metres to infinity. The riflescope incorporates windage adjustment (the multi-revolving scheme) and elevation adjustment (single-revolving scheme). The unit has tactile/audible step adjustments.
FEATURES:
|
Fully Multi-Coated |
|
First Focal Plane Reticle |
|
Illuminated Mil-Dot |
| 30 mm Tube diameter |
|
Single-Piece Tube |
|
Aircraft-Grade Aluminum with Hard Anodized Finish |
|
Waterproof |
|
Fogproof |
|
Shockproof |
SPECIFICATION:
|
Optics |
|
|
Minimum magnification (x) |
3 |
|
Maximum magnification (x) |
12 |
|
Objective lens diameter (mm) |
56 |
| Exit pupil diameter @ 3x (mm) | 18.6 |
|
Exit pupil diameter @ 12x (mm) |
4.7 |
|
Field of view @ 100 yards @ 3x (feet) |
36 |
|
Field of view @ 100 yards @ 12x (feet) |
9 |
|
Eye relief (mm) |
100 |
|
Diopter adjustment range |
±3 |
|
Ballistics |
|
|
Reticle pattern |
Mil-Dot |
|
Lit reticle |
✓ |
|
Lit reticle colour |
Red |
|
Adjustable reticle brightness |
✓ |
|
Windage adjustment step (MoA) |
0.25 |
|
Windage adjustment range (MoA) |
120 |
|
Elevation adjustment step (MoA) |
0.25 |
| Elevation adjustment step (MoA) |
340 |
|
Mechanics, Electronics & Environmental |
|
|
Dimensions (mm) |
328x69x65 |
|
Weight (g) |
695 (w/o mount) |
|
Shock resistance (G) |
500 |
|
Battery type |
CR 2032 (3 V) |
|
Battery life, maximum (hours) |
100 |
|
Operating temperature range (°C) |
-50 to +50 |
|
Storage temperature range (°C) |
-52 to +55 |
|
Humidity (%) |
98 |
|
Waterproofing |
MIL-STD-810G |
